Classical Wrapped

Product Range

Description

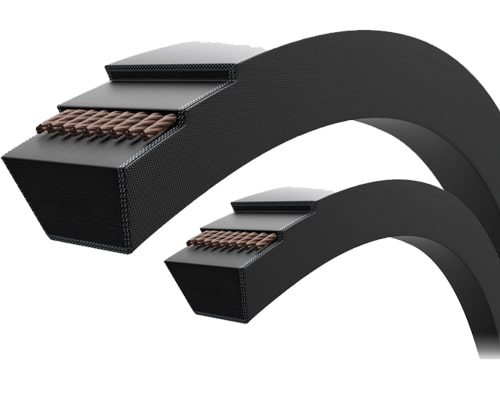

V-FIT classical wrapped V-Belts are designed with premium quality ingredients to deliver a class of art performance for high speed and high torque drives with significant and solid transmission capabilities resulting in longer service life. Our belts are constructed with high tensile, stiffer polyester cords along with wear-resistance Cover Fabric. Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

Application

V-FIT classical wrapped V-Belts cover a wide range of applications in every Industrial power transmission drive running 24 X 7. These belts are also applicable for drives in Agricultural Harvester Combines, Marine-Fishing Boat drives, etc.

Model

Classical Sections – FHP, FM, A, B, C, D, E

Technical Specification

Section Top Width(mm) Height(mm) Angle(degree) Length Range(inch)
FHP 9.70 6.00 40 25-75
FM 9.70 8.00 25-75
A 12.70 9.00 25-200
B 16.70 11.00 25-380
C 22.00 14.00 35.600
D 32.00 19.00 105-600
E 38.00 23.00 150-600
