Description

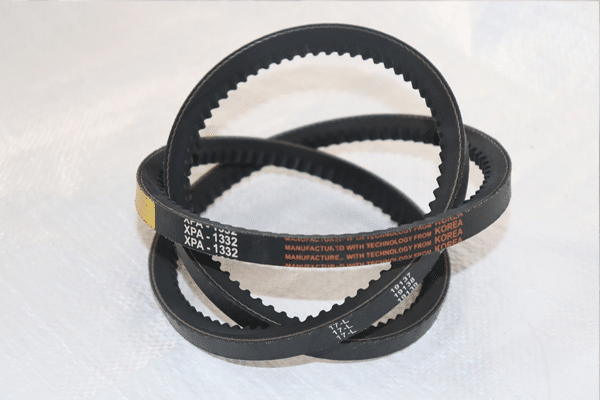

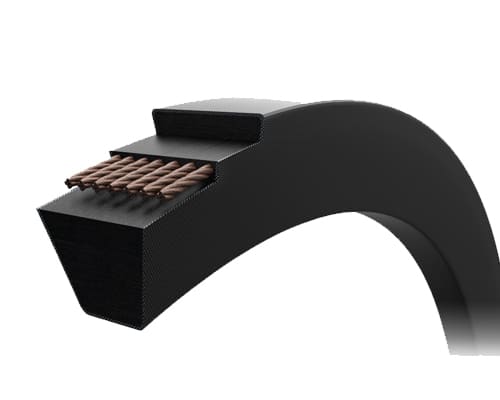

V-FIT Raw Edge Wedge Cogged Belts are engineered with high-performance synthetic elastomers that ensure high heat resistance. These belts have excellent wear resistance and bending stress resistance due to the cogged profile that enhances their durability. Wedge belts have a larger contact area than classical belts ensuring the lesser number of belts where space and weight savings are critical.
Application
V-FIT Raw Edge Wedge Cogged Belts are recommended in high-speed Industrial power transmission drives running 24 X 7 where critical machine designs that need high durability between changes. Also, the Raw Edge Wedge Cogged Belts are most efficient replacement for Conventional wedge belts at no cost for pulley change and smaller pulley drive designs. These belts are also applicable for drives in Agricultural Harvester Combines, Marine-Fishing Boat drives, etc.
Technical Specification
| Section | Top Width(mm) | Height(mm) | Angle(degree) | Length Range(inch) |
|---|---|---|---|---|
| XPZ/SPZX | 9.70 | 8.00 | 38 | 600-2800 |
| FMX | 9.70 | 8.00 | ||
| AX | 12.70 | 9.00 | ||
| BX | 16.70 | 11.00 | ||
| CX | 22.00 | 14.00 |
